Lug Position
If you have a 1971 Commando
NEVER fit an 062001 side stand, it may kill you if the circlip fails, fit
066357 with an 063049 bracket that you weld to your frame. If
you have an 062001 side stand currently fitted, change it RIGHT NOW!!
See The Pictures Below For Where 063049 Bracket Needs To Be welded To The
Frame When Fitting 066357 Late Type Side Stand

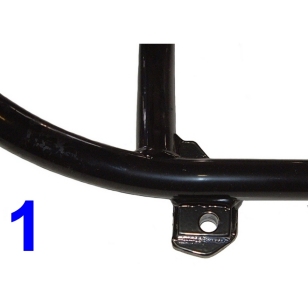

 View 1 From Left Side Of Frame |
 View 2 From Inside Of Frame |

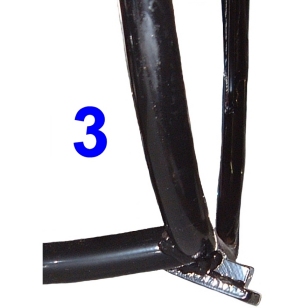

 View 3 From Front Of Frame |
Page last updated 09/12/19
