SS After An Order Number Denotes That This Part Is Made From Stainless Steel (INOX)
069535

Triumph (Pre Unit)

For Use With A Standard AMC Gearbox

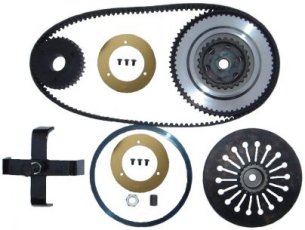

Kit Comprises Of:-

20mm x 35 Tooth Engine Pulley - Triumph
2 x Gold Plates With Large Hole
70 Tooth Clutch Basket
Back Plate & 8 Screws
067034 Sealed Clutch Bearing
069608 1000 8M 20mm Wide Belt (896 x 20mm If Triumph Case Used)
040360 Clutch Adjuster
060005 Clutch Adjuster Nut
060770 Diaphragm Spring
060749 Fibre Plate x 4
060746 Plain Plate x 5
063768 Pressure Plate
060753 Inner Circlip
060754 Outer Circlip
069148 Special Clutch Centre
060751 Diaphragm Circlip
060999 Clutch Compressor
Full Fitting Instructions Leaflet
The Clutch Will Be Sent Assembled

Please Note: We do not supply Belt Drives For Any Unit Twins
